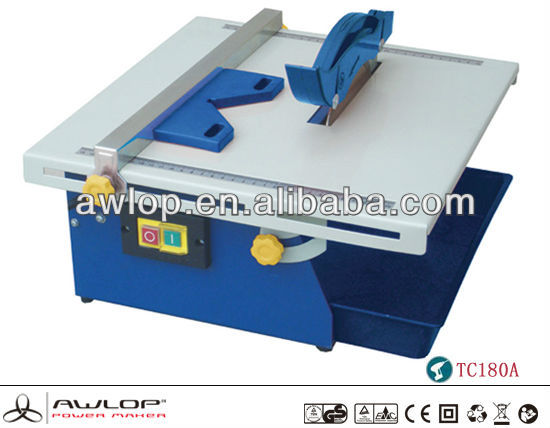

450W 180mm Electric Portable Wet Tile Cutter / Ceramic Tile Saw Cutting Machine
- Grade:DIY, Industrial
- Warranty:1 years
- Customized support:OEM, ODM
- Place of Origin:Zhejiang, China
- Brand Name:AWLOP
- Model Number:TC180A
- Saw Type:Tile Cutter
- Application:Tile Saw
- Rated Voltage:230V/120V
- Rated Input Power:450W
- No-Load Speed:2950/min
- Frequency:50Hz/60Hz
- Blade Diameter:180mm
- Max. Cutting Width:34mm
- Max. Cutting Depth:34mm
- Dimensions:TC180
- Power Source:Electric, Electricity
- Table Size:385*395mm
- Max cutting depth:34mm
- Blade size:180mm
Product Specifications
| Voltage/Frequency | 230V-50Hz/120V-60Hz |
| Input power | 450W |
| No-load speed | 2950/min |
| Diamond blade | ø180mm |
| Table size | 395*385mm |
| Max. cutting depth | 34mm( 90º) |
| Table tilting range | 0-45º |
| Supplied with parallel fence & mitre guide |
Product Description
The AWLOP Tile Cutter features a 3/5 HP direct-drive motor and 7-Inch diamond blade that makes it perfect for cutting ceramic tiles. The saw's compact size is great for working in tight places and small jobs. The open table design provides the versatility to cut larger tiles. The tilt-upcuttingtable helps you make precise 15, 30 and 45-degree miter cuts. Automatic thermal overload protection prevents the motor from overheating. Saw features blade-cooling water reservoir for wet cutting.
1. Constructed in the shape of a bench-mounted timber cutting unit for cutting wood lengthwise at an angle for for making transverse cuts.
2. The platform can be rotated by up to 45 degree around the saw blade axis.
3. The angle of delivery of material to be cut can be adjusted in the range of 0 degree to 45 degree relative to the saw blade.
4. The depth of cut can be set by stepless adjustment between 0 and 20mm.
